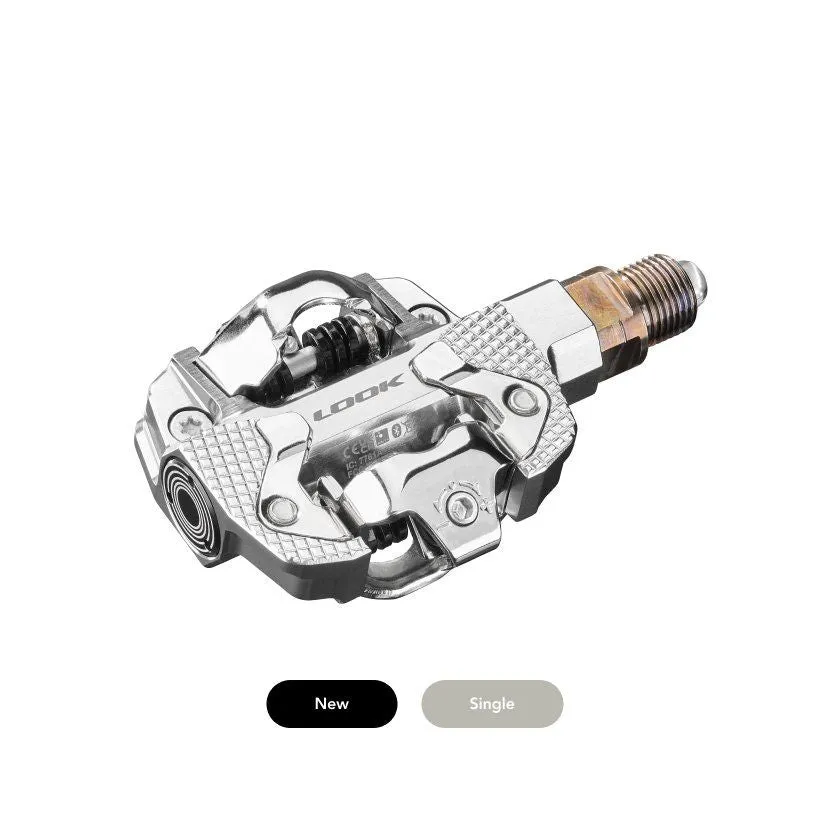

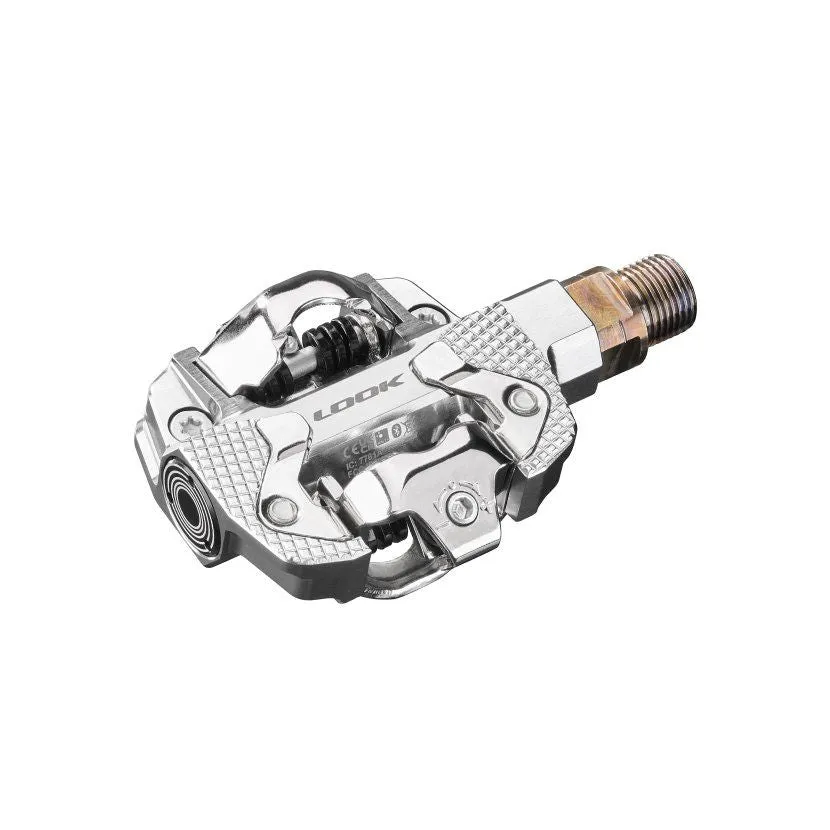

For gravel or mountain biking, the integrated power meter of our X-Track Power Single model allows you to optimise your effort, then to analyse your training and race data. Featuring an outstanding weight/contact area ratio, they are incredibly efficient on technical rides and designed to withstand the toughest conditions. A simple, reliable and accurate tool to measure your effort, combined with SPD-compatible pedals offering outstanding performance.

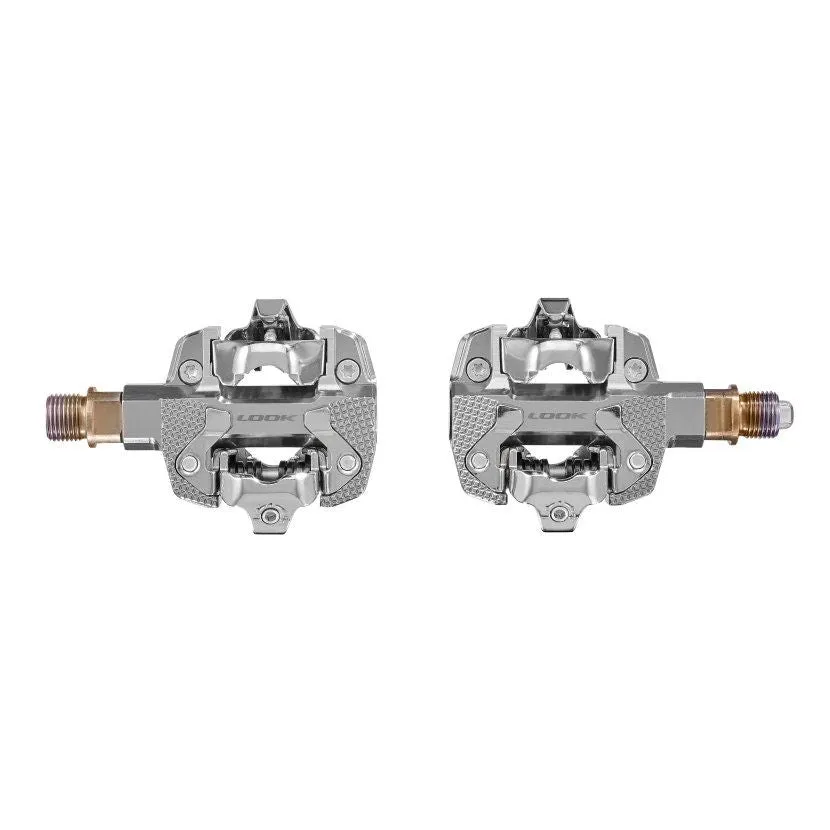

- An accurate power meter in a pair of efficient SPD compatible pedals.
- Lightweight (404 g) with all-terrain efficiency.
- Installed and set up in minutes.
- Totally weatherproof and splashproof.
Technical specifications
Axle
| Spindle material | Power |
| Waterproofness | IPX7 |
Body & Platform
| Technology | X-Track |
| Body material | Aluminium |
| Platform material | Stainless Steel |
| Platform area | 504 mm2 |
| Platform width | 60 mm |
| Float angle | 6° |
| Q Factor | 53 mm |
| Total stack height (pedal cleat) | 16.8 mm ( 10.7 6.1 ) |
| Bearings | Steel |
Retention & Cleats
| Retention | 6 to 14Nm |

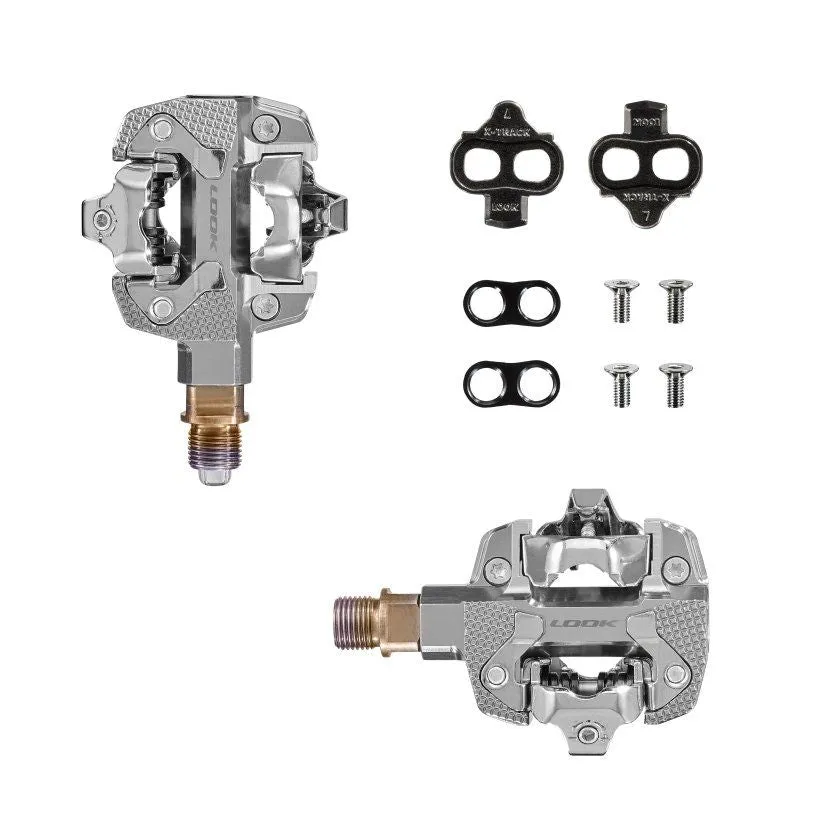

| Cleats | Standard Cleat included |
Performance Indicators
| Total Power | Left and right |
| Power | Left and right |
| Force | Left |
| Pedalling efficiency | Left and right |
| Bluetooth and ANT | Yes |
| Autonomy | 60 Hrs |
| Battery type | Li-Po, rechargeable |
| Battery capacity | 140mAh |
| Battery life | Battery life - in use : 60 hours
Battery life - in sleep mode : 6 months
Battery life - in deep sleep : > 12 months |
| Battery warning | Yes |
| Battery durability | Less than 20% capacity loss after 300 full cycles (approx. 10 years of use) |

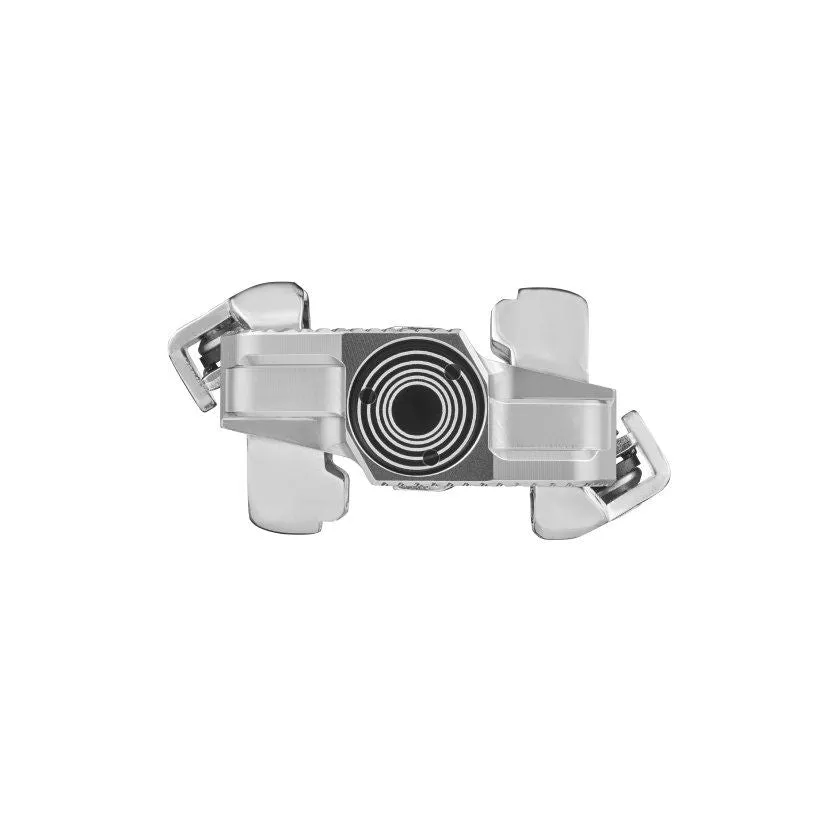

| Wake-up | Rotation |
| Software update | Yes, with LOOK app |

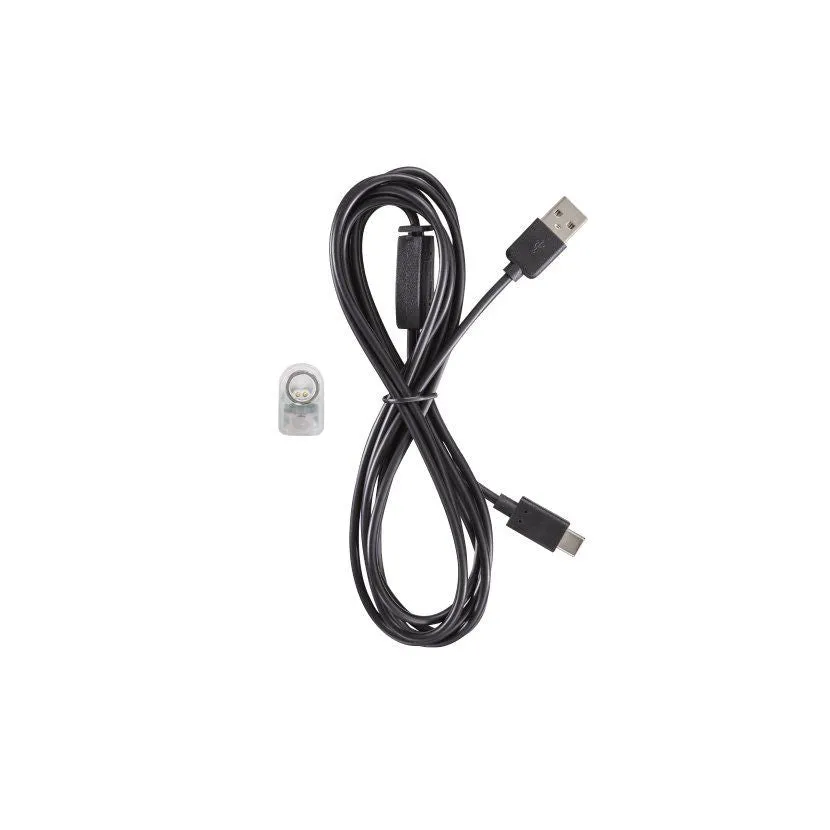

| Battery connectivity | Blade Power USB-C Cable |
Weight & Accessories
| Pedal | 202 g |
| Weight pair cleats | 455 g |
