Description

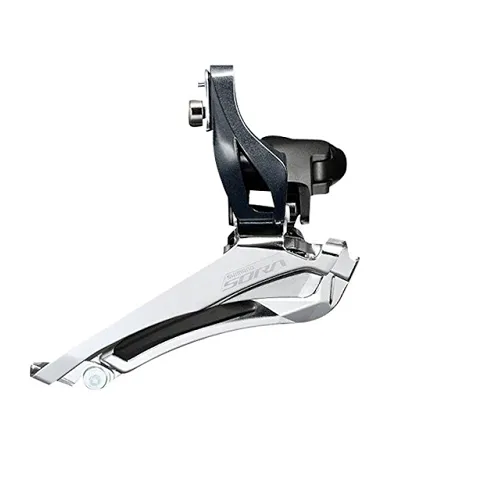

Shimano Sora FD-R3000 – rugged front derailleur for 2×9-speed drivetrains
The Shimano Sora front derailleur FD-R3000 for Road bikes with 2×9-speed drivetrains inspires with its smooth-running, robust function and reliable shifting. It covers a difference of 16 teeth and can be used for chainrings up to 52 teeth. In addition to the braze-on version, there is a model with clamp for 34.9 mm seat tubes, which is also compatible with thinner seat tubes thanks to the adapter supplied.

Specifications:
Series: Sora R3000
Application: Road, City
Gearing: 2x (combined with 9-speed)
Chainstay Angle: 61-66°
Chainline: 43.5 mm
Chainring Size (max.): 46-52 teeth
Capacity: 16 teeth
Cable Routing: down pull
Movement: down-swing
Mount: braze-on, clamp
Clamp Diameter: 34.9 mm with adapter 31.8 mm/28.6 mm

Technical Information:
Outer Body Material: aluminium
Inner Body Material: aluminium
Cage Material: steel

Features:
– easier shifting in front
– version with long lever arm
– painted parallelogram
– chrome-plated cage plates

Models:
braze-on:
Mount: braze-on
Type: FD-R3000-F
Manufacturer Part Number: E-FDR3000F

34.9 mm:
Mount: clamp (34.9 mm diameter; 31.8 mm and 28.6 mm with adapter)
Type: FD-R3000-B
Manufacturer Part Number: E-FDR3000XDescription
